LastPass


Version	1.20.0 (View all)
Compatible Kibana version(s)	8.13.0 or higher 9.0.0 or higher
Supported Serverless project types What's this?	Security Observability
Subscription level What's this?	Basic
Level of support What's this?	Elastic

Overview

The LastPass integration allows users to monitor Detailed Shared Folder Data, User Data, and Event Report Logs. LastPass is a cloud-based password manager that stores users' login information online in a secure database and allows users to generate unique passwords for each site they visit. In addition, LastPass stores all users' passwords and enables them to log into their accounts with ease. It’s available on all major platforms, including mobile devices, computers, and browser extensions.

Data streams

The LastPass integration collects logs for three types of events: Detailed Shared Folder Data, User Data, and Event Report.

Detailed Shared Folder Data is used to get a detailed list of all shared folders, the sites within them, and the permissions granted to them. See more details in the doc here.

User Data is used to get account details about the user. See more details in the doc here.

Event Report is used to gather information about events that have taken place in the user's LastPass Business account. See more details in the doc here.

Requirements

Elasticsearch is needed to store and search data, and Kibana is needed for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your hardware.

NOTE
- A business account is required to use the LastPass integration.
- The LastPass Provisioning API does not support managing groups for pre-configured SSO (Cloud) apps for LastPass Business accounts.

Setup

To collect data from the LastPass REST APIs, follow the below steps:

Log in with the user's email address and master password to access the Admin Console.
If prompted, complete the steps for multifactor authentication (if it is enabled for the user account).

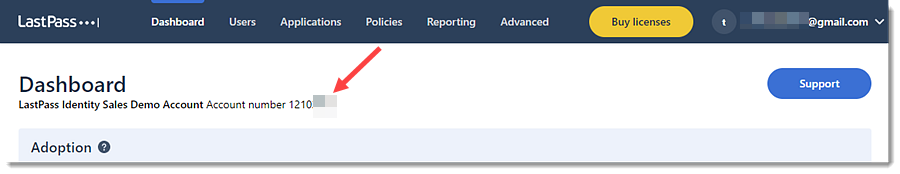

To get an Account Number(CID), follow the below steps:

On the Dashboard tab, the Account Number(CID) is located at the top of the page. it is preceded by the words Account number.

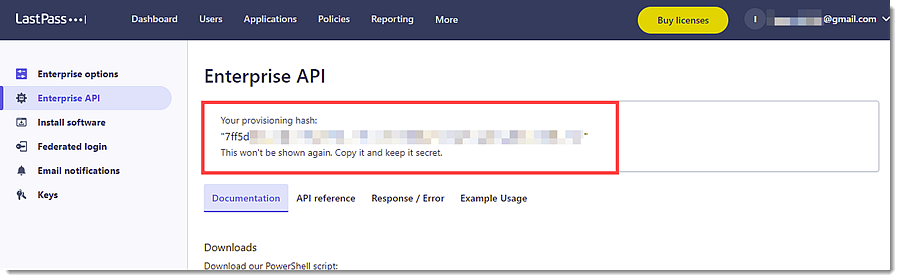

To create a Provisioning Hash, follow the below steps:

Go to Advanced -> Enterprise API.
Choose from the following options:
- If the user has not previously created a provisioning hash, click Create provisioning hash -> OK, then the provisioning hash is shown at the top of the page.
- If the user previously created a provisioning hash but has since forgotten it, the user can generate a new one.
- NOTE: If the user has already created a provisioning hash, then generating a new one will invalidate the previous hash, and will require updating all integrations with the newly generated hash.
- To proceed with creating a new provisioning hash, click Reset your provisioning hash -> OK, then a new provisioning hash is shown at the top of the page.

		{
    "@timestamp": "2024-05-24T11:28:38.242Z",
    "agent": {
        "ephemeral_id": "4a4388c0-12ab-4c2c-910c-c912f6bd4730",
        "id": "b0183e4b-ecd8-4ee9-8e73-bb43ce3ddcf2",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.12.2"
    },
    "data_stream": {
        "dataset": "lastpass.detailed_shared_folder",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "b0183e4b-ecd8-4ee9-8e73-bb43ce3ddcf2",
        "snapshot": false,
        "version": "8.12.2"
    },
    "event": {
        "agent_id_status": "verified",
        "created": "2024-05-24T11:28:38.242Z",
        "dataset": "lastpass.detailed_shared_folder",
        "ingested": "2024-05-24T11:28:50Z",
        "kind": "state",
        "original": "{\"id\":\"101\",\"score\":99,\"sharedfoldername\":\"ThisSFName\",\"users\":{\"can_administer\":true,\"give\":false,\"readonly\":true,\"sites\":[\"aaa.com\",\"bbb.com\"],\"username\":\"joe.user@lastpass.com\"}}",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "httpjson"
    },
    "lastpass": {
        "detailed_shared_folder": {
            "name": "ThisSFName",
            "score": 99,
            "shared_folder": {
                "id": "101"
            },
            "user": {
                "can_administer": true,
                "give": false,
                "name": "joe.user@lastpass.com",
                "read_only": true,
                "site": [
                    "aaa.com",
                    "bbb.com"
                ]
            }
        }
    },
    "related": {
        "user": [
            "joe.user@lastpass.com"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "lastpass-detailed_shared_folder"
    ],
    "user": {
        "email": "joe.user@lastpass.com"
    }
}



Field	Description	Type
@timestamp	Event timestamp.	date
cloud.image.id	Image ID for the cloud instance.	keyword
data_stream.dataset	Data stream dataset.	constant_keyword
data_stream.namespace	Data stream namespace.	constant_keyword
data_stream.type	Data stream type.	constant_keyword
event.dataset	Event dataset.	constant_keyword
event.module	Event module.	constant_keyword
host.containerized	If the host is a container.	boolean
host.os.build	OS build information.	keyword
host.os.codename	OS codename, if any.	keyword
input.type	Input type	keyword
lastpass.detailed_shared_folder.deleted		boolean
lastpass.detailed_shared_folder.name		keyword
lastpass.detailed_shared_folder.score		double
lastpass.detailed_shared_folder.shared_folder.id		keyword
lastpass.detailed_shared_folder.user.can_administer		boolean
lastpass.detailed_shared_folder.user.give		boolean
lastpass.detailed_shared_folder.user.name		keyword
lastpass.detailed_shared_folder.user.read_only		boolean
lastpass.detailed_shared_folder.user.site		keyword
lastpass.detailed_shared_folder.user.super_admin		boolean
log.offset	Log offset	long

event_report

This is the event_report dataset.

Example

		{
    "@timestamp": "2015-07-17T09:51:51.000Z",
    "agent": {
        "ephemeral_id": "9ece9bbd-9d6c-4204-bd9f-3182e1a55f27",
        "id": "02365282-f602-4b79-beec-adb210ac6467",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.7.1"
    },
    "data_stream": {
        "dataset": "lastpass.event_report",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "02365282-f602-4b79-beec-adb210ac6467",
        "snapshot": false,
        "version": "8.7.1"
    },
    "event": {
        "action": "failed login attempt",
        "agent_id_status": "verified",
        "category": [
            "authentication"
        ],
        "created": "2023-08-14T22:51:42.186Z",
        "dataset": "lastpass.event_report",
        "ingested": "2023-08-14T22:51:43Z",
        "kind": "event",
        "original": "{\"Action\":\"Failed Login Attempt\",\"Data\":\"\",\"IP_Address\":\"10.16.21.21\",\"Time\":\"2015-07-17 09:51:51\",\"Username\":\"j.user@example.com\",\"id\":\"Event1\"}",
        "outcome": "failure",
        "timezone": "UTC",
        "type": [
            "start"
        ]
    },
    "input": {
        "type": "httpjson"
    },
    "lastpass": {
        "event_report": {
            "action": "Failed Login Attempt",
            "ip": "10.16.21.21",
            "time": "2015-07-17T09:51:51.000Z",
            "user_name": "j.user@example.com"
        }
    },
    "related": {
        "ip": [
            "10.16.21.21"
        ],
        "user": [
            "j.user@example.com"
        ]
    },
    "source": {
        "ip": "10.16.21.21"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "lastpass-event_report"
    ],
    "user": {
        "email": [
            "j.user@example.com"
        ]
    }
}



Field	Description	Type
@timestamp	Event timestamp.	date
cloud.image.id	Image ID for the cloud instance.	keyword
data_stream.dataset	Data stream dataset.	constant_keyword
data_stream.namespace	Data stream namespace.	constant_keyword
data_stream.type	Data stream type.	constant_keyword
event.dataset	Event dataset.	constant_keyword
event.module	Event module.	constant_keyword
host.containerized	If the host is a container.	boolean
host.os.build	OS build information.	keyword
host.os.codename	OS codename, if any.	keyword
input.type	Input type	keyword
lastpass.event_report.action		keyword
lastpass.event_report.data.added_site		keyword
lastpass.event_report.data.deleted_site		keyword
lastpass.event_report.data.failed_login		keyword
lastpass.event_report.data.group_name		keyword
lastpass.event_report.data.login_site		keyword
lastpass.event_report.data.original		text
lastpass.event_report.data.renamed_shared_folder_name		keyword
lastpass.event_report.data.saml_login		keyword
lastpass.event_report.data.secure_note		keyword
lastpass.event_report.data.shared_folder_name		keyword
lastpass.event_report.data.shared_folder_user_permissions.admin		keyword
lastpass.event_report.data.shared_folder_user_permissions.hide_password		keyword
lastpass.event_report.data.shared_folder_user_permissions.read_only		keyword
lastpass.event_report.data.site		keyword
lastpass.event_report.data.user_email		keyword
lastpass.event_report.ip		ip
lastpass.event_report.time		date
lastpass.event_report.user_name		keyword
log.offset	Log offset	long

user

This is the user dataset.

Example

		{
    "@timestamp": "2023-07-24T13:40:43.764Z",
    "agent": {
        "ephemeral_id": "7022fcec-d213-4320-8c7d-663b20b9d82c",
        "id": "e4c29d91-bbb7-42b8-80fd-85ddb56d2300",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.8.2"
    },
    "data_stream": {
        "dataset": "lastpass.user",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "e4c29d91-bbb7-42b8-80fd-85ddb56d2300",
        "snapshot": false,
        "version": "8.8.2"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "iam"
        ],
        "created": "2023-07-24T13:40:43.764Z",
        "dataset": "lastpass.user",
        "ingested": "2023-07-24T13:40:46Z",
        "kind": "state",
        "original": "{\"admin\":false,\"applications\":0,\"attachments\":1,\"created\":\"2014-03-12 10:02:56\",\"disabled\":false,\"formfills\":2,\"fullname\":\"Ned Flanders\",\"groups\":[\"Domain Admins\",\"Dev Team\",\"Support Team\"],\"id\":\"101\",\"last_login\":\"2015-05-29 11:45:05\",\"last_pw_change\":\"2015-05-19 10:58:33\",\"linked\":\"personal.account@mydomain.com\",\"mpstrength\":\"100\",\"neverloggedin\":false,\"notes\":19,\"password_reset_required\":false,\"sites\":72,\"username\":\"user1@lastpass.com\"}",
        "type": [
            "user"
        ]
    },
    "input": {
        "type": "httpjson"
    },
    "lastpass": {
        "user": {
            "application": 0,
            "attachment": 1,
            "created": "2014-03-12T10:02:56.000Z",
            "disabled": false,
            "form_fill": 2,
            "full_name": "Ned Flanders",
            "group": [
                "Domain Admins",
                "Dev Team",
                "Support Team"
            ],
            "id": "101",
            "last_login": "2015-05-29T11:45:05.000Z",
            "last_password_change": "2015-05-19T10:58:33.000Z",
            "linked": "personal.account@mydomain.com",
            "master_password_strength": 100,
            "never_logged_in": false,
            "note": 19,
            "password_reset_required": false,
            "sites": 72,
            "user_name": "user1@lastpass.com"
        }
    },
    "related": {
        "user": [
            "user1@lastpass.com",
            "Ned Flanders"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "lastpass-user"
    ],
    "user": {
        "email": "user1@lastpass.com",
        "full_name": "Ned Flanders",
        "group": {
            "name": [
                "Domain Admins",
                "Dev Team",
                "Support Team"
            ]
        },
        "id": "101"
    }
}



Field	Description	Type
@timestamp	Event timestamp.	date
cloud.image.id	Image ID for the cloud instance.	keyword
data_stream.dataset	Data stream dataset.	constant_keyword
data_stream.namespace	Data stream namespace.	constant_keyword
data_stream.type	Data stream type.	constant_keyword
event.dataset	Event dataset.	constant_keyword
event.module	Event module.	constant_keyword
host.containerized	If the host is a container.	boolean
host.os.build	OS build information.	keyword
host.os.codename	OS codename, if any.	keyword
input.type	Input type	keyword
lastpass.user.application		long
lastpass.user.attachment		long
lastpass.user.created		date
lastpass.user.disabled		boolean
lastpass.user.duo.user_name		keyword
lastpass.user.form_fill		long
lastpass.user.full_name		keyword
lastpass.user.group		keyword
lastpass.user.id		keyword
lastpass.user.last_login		date
lastpass.user.last_password_change		date
lastpass.user.linked		keyword
lastpass.user.master_password_strength		long
lastpass.user.never_logged_in		boolean
lastpass.user.note		long
lastpass.user.password_reset_required		boolean
lastpass.user.sites		long
lastpass.user.total_score		double
lastpass.user.user_name		keyword
log.offset	Log offset	long

Changelog

Version	Details	Kibana version(s)
1.20.0	Enhancement (View pull request) Update Kibana constraint to support 9.0.0.	8.13.0 or higher 9.0.0 or higher
1.19.1	Bug fix (View pull request) Updated SSL description in package manifest.yml to be uniform and to include links to documentation.	8.13.0 or higher
1.19.0	Enhancement (View pull request) Do not remove `event.original` in main ingest pipeline.	8.13.0 or higher
1.18.0	Enhancement (View pull request) Add "preserve_original_event" tag to documents with `event.kind` set to "pipeline_error".	8.13.0 or higher
1.17.0	Enhancement (View pull request) Update the kibana constraint to ^8.13.0. Modified the field definitions to remove ECS fields made redundant by the ecs@mappings component template.	8.13.0 or higher
1.16.0	Enhancement (View pull request) Add pagesize and pageindex to request.	8.12.0 or higher
1.15.1	Bug fix (View pull request) Fix page index for event reports.	8.12.0 or higher
1.15.0	Enhancement (View pull request) Set sensitive values as secret.	8.12.0 or higher
1.14.2	Bug fix (View pull request) Fix ingest pipeline conditional field handling. Bug fix (View pull request) Reduce complexity of grok expressions.	8.7.1 or higher
1.14.1	Enhancement (View pull request) Changed owners	8.7.1 or higher
1.14.0	Enhancement (View pull request) Limit request tracer log count to five.	8.7.1 or higher
1.13.0	Enhancement (View pull request) ECS version updated to 8.11.0.	8.7.1 or higher
1.12.0	Enhancement (View pull request) Improve 'event.original' check to avoid errors if set.	8.7.1 or higher
1.11.0	Enhancement (View pull request) ECS version updated to 8.10.0.	8.7.1 or higher
1.10.0	Enhancement (View pull request) The format_version in the package manifest changed from 2.11.0 to 3.0.0. Removed dotted YAML keys from package manifest. Added 'owner.type: elastic' to package manifest.	8.7.1 or higher
1.9.0	Enhancement (View pull request) Add tags.yml file so that integration's dashboards and saved searches are tagged with "Security Solution" and displayed in the Security Solution UI.	8.7.1 or higher
1.8.0	Enhancement (View pull request) Allow user to specify timezone for event report events. Bug fix (View pull request) Fix event.type for authorization events.	8.7.1 or higher
1.7.0	Enhancement (View pull request) Update package to ECS 8.9.0.	8.7.1 or higher
1.6.0	Enhancement (View pull request) Document duration units.	8.7.1 or higher
1.5.0	Enhancement (View pull request) Update package-spec to 2.9.0.	8.7.1 or higher
1.4.0	Enhancement (View pull request) Ensure event.kind is correctly set for pipeline errors.	8.7.1 or higher
1.3.0	Enhancement (View pull request) Update package to ECS 8.8.0.	8.7.1 or higher
1.2.0	Enhancement (View pull request) Add a new flag to enable request tracing	8.7.1 or higher
1.1.1	Enhancement (View pull request) Use Eastern Time as default timezone for Lastpass API	7.17.0 or higher 8.0.0 or higher
1.1.0	Enhancement (View pull request) Update package to ECS 8.7.0.	7.17.0 or higher 8.0.0 or higher
1.0.0	Enhancement (View pull request) Release LastPass as GA.	7.17.0 or higher 8.0.0 or higher
0.3.1	Enhancement (View pull request) Added categories and/or subcategories.	—
0.3.0	Enhancement (View pull request) Update package to ECS 8.6.0.	—
0.2.4	Enhancement (View pull request) Add `event.outcome` field and Add support for new type of `event.action`.	—
0.2.3	Bug fix (View pull request) Update ECS `source.geo.location` field.	—
0.2.2	Enhancement (View pull request) Update the pagination termination condition.	—
0.2.1	Bug fix (View pull request) Fix grammar errors in dashboards.	—
0.2.0	Enhancement (View pull request) Update package to ECS 8.5.0.	—
0.1.0	Enhancement (View pull request) Initial Release.	—

The Search AI Company

ELK Stack

Elastic Cloud

Generative AI

Search

Security

Observability

By solution

Industries

Customer spotlight

Research

Build

Learn

Connect

LastPass

Overview

Data streams

Requirements

Setup

To collect data from the LastPass REST APIs, follow the below steps:

Logs reference

detailed_shared_folder

Example

event_report

Example

user

Example

Changelog
