Elasticsearch query

edit

The Elasticsearch query rule type runs a user-configured query, compares the number of matches to a configured threshold, and schedules actions to run when the threshold condition is met.

Create the rule

edit

Fill in the name and optional tags, then select Elasticsearch query. Elasticsearch query rule can be defined using KQL/Lucene or Query DSL.

Define the conditions

edit

Define properties to detect the condition.

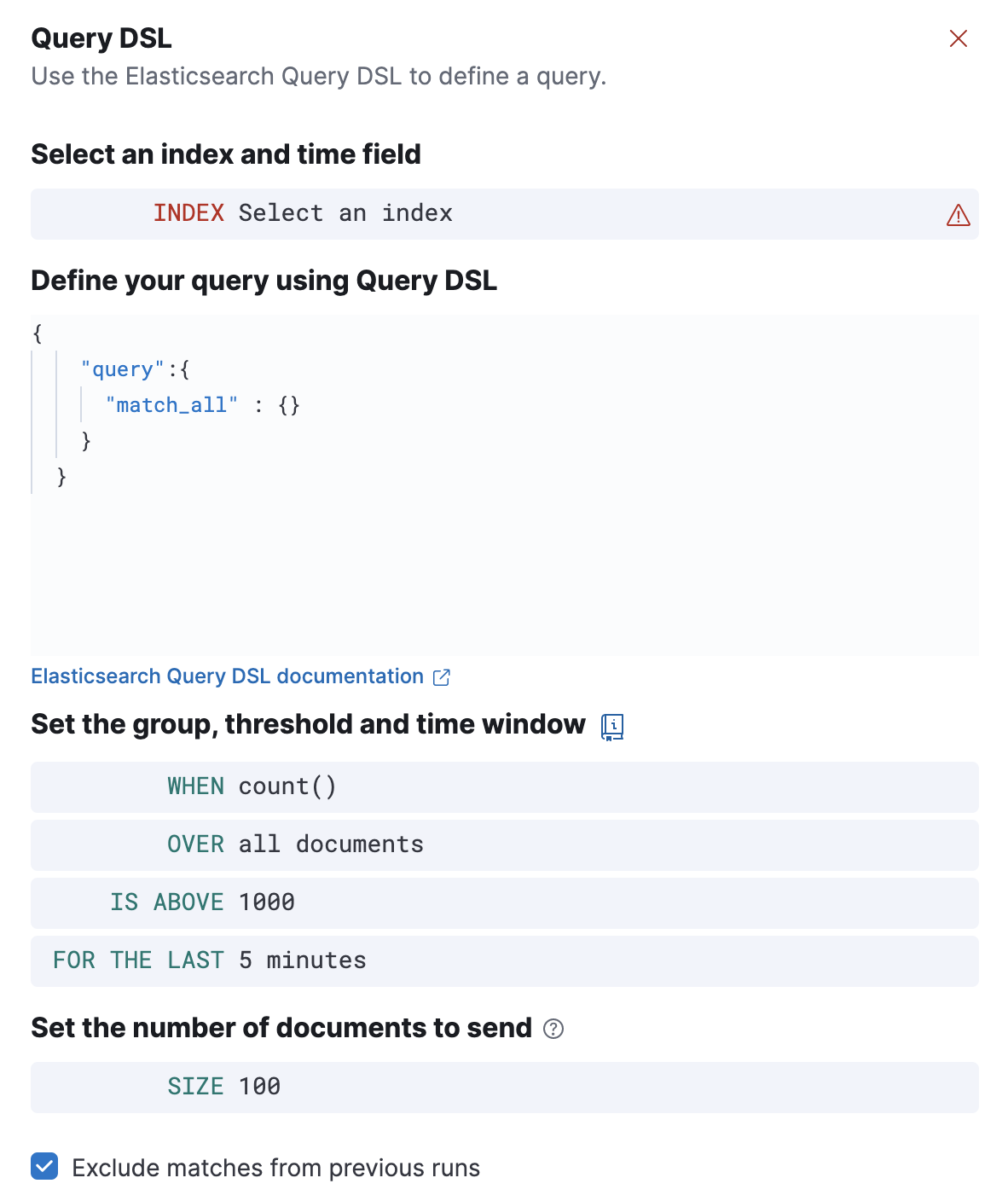

Eight clauses define the condition to detect
Define your query

If you chose the query DSL option, you must specify indices to query and a time field that is used for the time window. You must then define a query in Elasticsearch query DSL. Only the query, fields, _source and runtime_mappings fields are used, other DSL fields are not considered.

If you chose the KQL or Lucene option, you must specify a data view then define a text-based query.

Set the group, theshold, and time window
When
Specify how to calculate the value that is compared to the threshold. The value is calculated by aggregating a numeric field within the time window. The aggregation options are: count, average, sum, min, and max. When using count the document count is used and an aggregation field is not necessary.
Over or Grouped Over
Specify whether the aggregation is applied over all documents or split into groups using a grouping field. If grouping is used, an alert will be created for each group when it meets the condition. To limit the number of alerts on high cardinality fields, you must specify the number of groups to check against the threshold. Only the top groups are checked.
Threshold
Defines a threshold value and a comparison operator (is above, is above or equals, is below, is below or equals, or is between). The value calculated by the aggregation is compared to this threshold.
Time window
Defines how far back to search for documents, using the time field set in the index clause. Generally this value should be set to a value higher than the check interval, to avoid gaps in detection.
Set the number of documents to send
Specifies the number of documents to pass to the configured actions when the threshold condition is met.
Exclude matches from previous run
Turn on to avoid alert duplication by excluding documents that have already been detected by the previous rule run. This option is not available when a grouping field is specified.

Add action variables

edit

Add an action to run when the rule condition is met. The following variables are specific to the Elasticsearch query rule. You can also specify variables common to all rules.

context.title
A preconstructed title for the rule. Example: rule term match alert query matched.
context.message
A preconstructed message for the rule. Example:
rule 'my es-query' is active:
- Value: 2
- Conditions Met: Number of matching documents is greater than 1 over 5m
- Timestamp: 2022-02-03T20:29:27.732Z
context.group
The name of the action group associated with the condition. Example: query matched.
context.date
The date, in ISO format, that the rule met the condition. Example: 2022-02-03T20:29:27.732Z.
context.value
The value of the rule that met the condition.
context.conditions
A description of the condition. Example: count greater than 4.
context.hits

The most recent documents that matched the query. Using the Mustache template array syntax, you can iterate over these hits to get values from the ES documents into your actions.

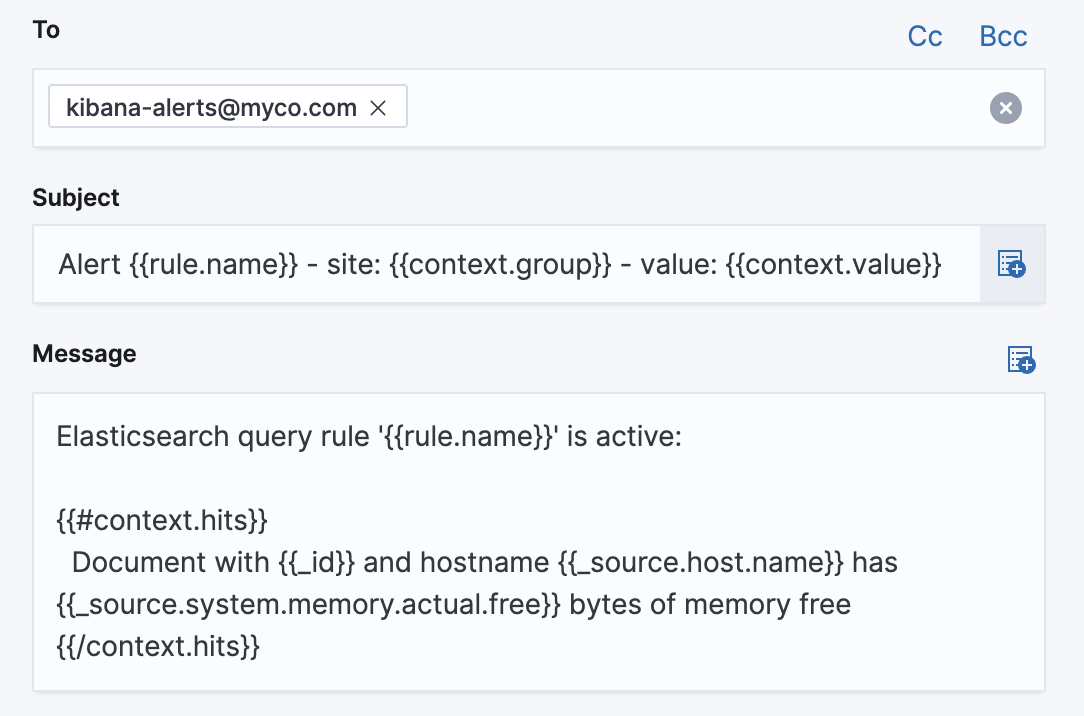

Iterate over hits using Mustache template syntax

The documents returned by context.hits include the _source field. If the Elasticsearch query search API’s fields parameter is used, documents will also return the fields field, which can be used to access any runtime fields defined by the runtime_mappings parameter as the following example shows:

{{#context.hits}}
timestamp: {{_source.@timestamp}}
day of the week: {{fields.day_of_week}}
{{/context.hits}}

The fields parameter here is used to access the day_of_week runtime field.

As the fields response always returns an array of values for each field, the Mustache template array syntax is used to iterate over these values in your actions as the following example shows:

{{#context.hits}}
Labels:
{{#fields.labels}}
- {{.}}
{{/fields.labels}}
{{/context.hits}}

Test your query

edit

Use the Test query feature to verify that your query DSL is valid.

  • Valid queries are run against the configured index using the configured time window. The number of documents that match the query is displayed.

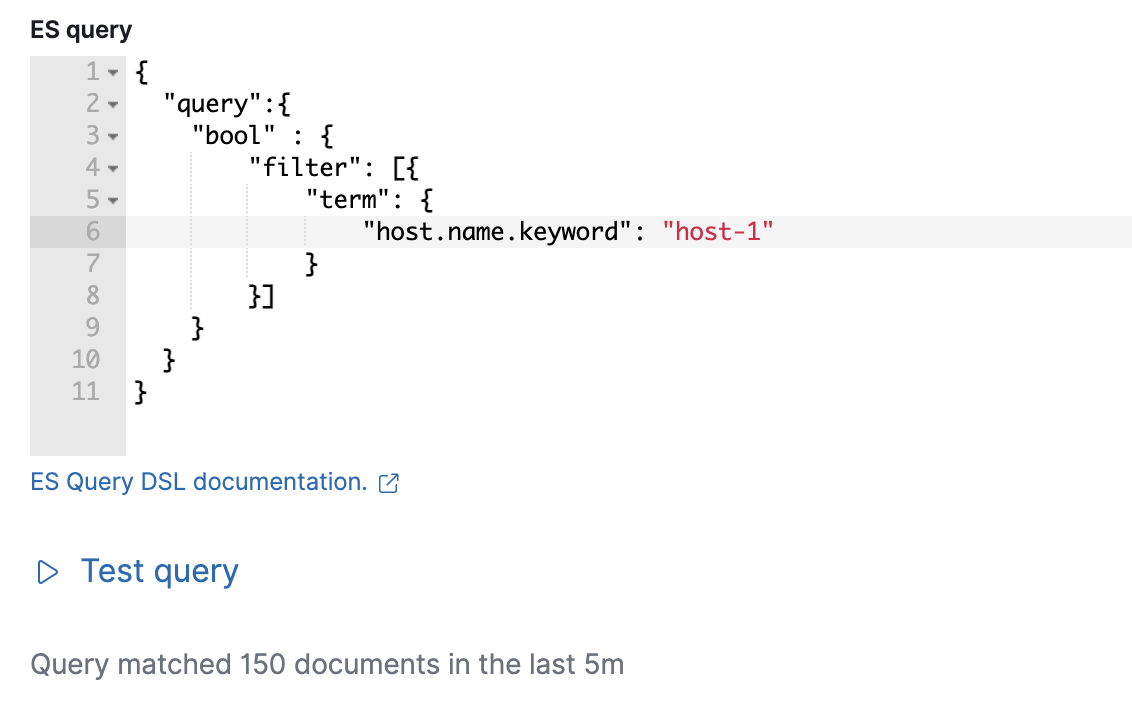

    Test Elasticsearch query returns number of matches when valid
  • An error message is shown if the query is invalid.

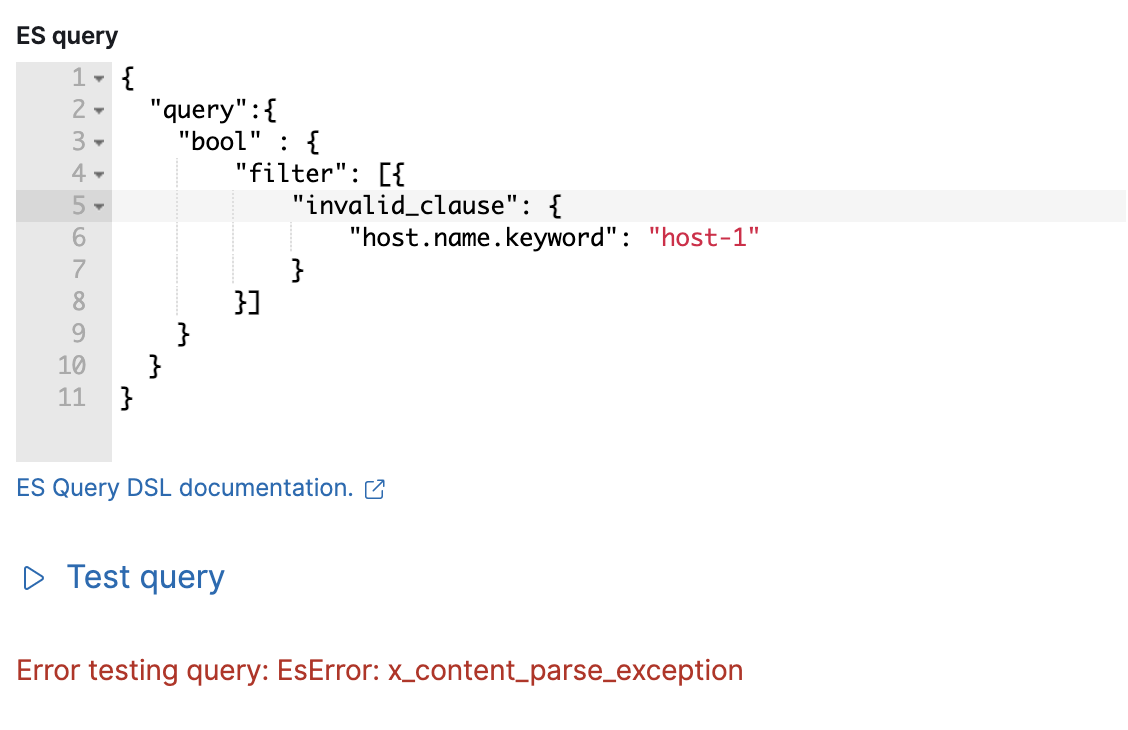

    Test Elasticsearch query shows error when invalid

Handling multiple matches of the same document

edit

By default, Exclude matches from previous run is turned on and the rule checks for duplication of document matches across multiple runs. If you configure the rule with a schedule interval smaller than the time window and a document matches a query in multiple runs, it is alerted on only once.

The rule uses the timestamp of the matches to avoid alerting on the same match multiple times. The timestamp of the latest match is used for evaluating the rule conditions when the rule runs. Only matches between the latest timestamp from the previous run and the current run are considered.

Suppose you have a rule configured to run every minute. The rule uses a time window of 1 hour and checks if there are more than 99 matches for the query. The Elasticsearch query rule type does the following:

Run 1 (0:00)

Rule finds 113 matches in the last hour: 113 > 99

Rule is active and user is alerted.

Run 2 (0:01)

Rule finds 127 matches in the last hour. 105 of the matches are duplicates that were already alerted on previously, so you actually have 22 matches: 22 !> 99

No alert.

Run 3 (0:02)

Rule finds 159 matches in the last hour. 88 of the matches are duplicates that were already alerted on previously, so you actually have 71 matches: 71 !> 99

No alert.

Run 4 (0:03)

Rule finds 190 matches in the last hour. 71 of them are duplicates that were already alerted on previously, so you actually have 119 matches: 119 > 99

Rule is active and user is alerted.
