Apache HTTP Server OpenTelemetry Assets

Apache HTTP Server is a widely used open-source web server that delivers web content over HTTP. It supports modular functionality through dynamically loadable modules, including mod_status for runtime server performance monitoring.

This package provides dashboards, alert rules, and SLO templates for monitoring Apache HTTP Server using data collected by the OpenTelemetry Collector's Apache receiver, covering request traffic, worker pool utilization, connection management, and system resource consumption.

The Apache HTTP Server OpenTelemetry assets have been tested with OpenTelemetry Apache receiver v0.146.1.

Apache versions tested against:

• Apache 2.4

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your own hardware.

The Apache receiver collects metrics from Apache's mod_status module. You must enable mod_status and make the server-status endpoint accessible.

1. Ensure mod_status is loaded in your Apache configuration:

LoadModule status_module modules/mod_status.so


2. Enable ExtendedStatus and configure access to the status endpoint:

ExtendedStatus On

<Location /server-status>
    SetHandler server-status
    Require local
    Require ip <COLLECTOR_IP>
</Location>


3. Verify the endpoint is accessible:

curl http://localhost/server-status?auto


Configure the OpenTelemetry Collector (EDOT Collector or upstream Collector) to scrape Apache metrics and export them to Elasticsearch.

• <APACHE_STATUS_ENDPOINT>: Full URL to the Apache server-status endpoint (for example, http://localhost:80/server-status?auto)
• <ES_ENDPOINT>: Elasticsearch endpoint (for example, https://localhost:9200)
• ${env:ES_USER}: Elasticsearch username (set using an environment variable)
• ${env:ES_PASSWORD}: Elasticsearch password (set using an environment variable)

receivers:
  apache:
    endpoint: <APACHE_STATUS_ENDPOINT>
    collection_interval: 10s

processors:
  resourcedetection/system:
    detectors: ["system"]
    system:
      hostname_sources: ["os"]
      resource_attributes:
        host.name:
          enabled: true
        host.id:
          enabled: false

exporters:
  elasticsearch/otel:
    endpoint: <ES_ENDPOINT>
    user: ${env:ES_USER}
    password: ${env:ES_PASSWORD}
    mapping:
      mode: otel

service:
  pipelines:
    metrics:
      receivers: [apache]
      processors: [resourcedetection/system]
      exporters: [elasticsearch/otel]


Refer to the metadata.yaml of the OpenTelemetry Apache receiver for details on available metrics.

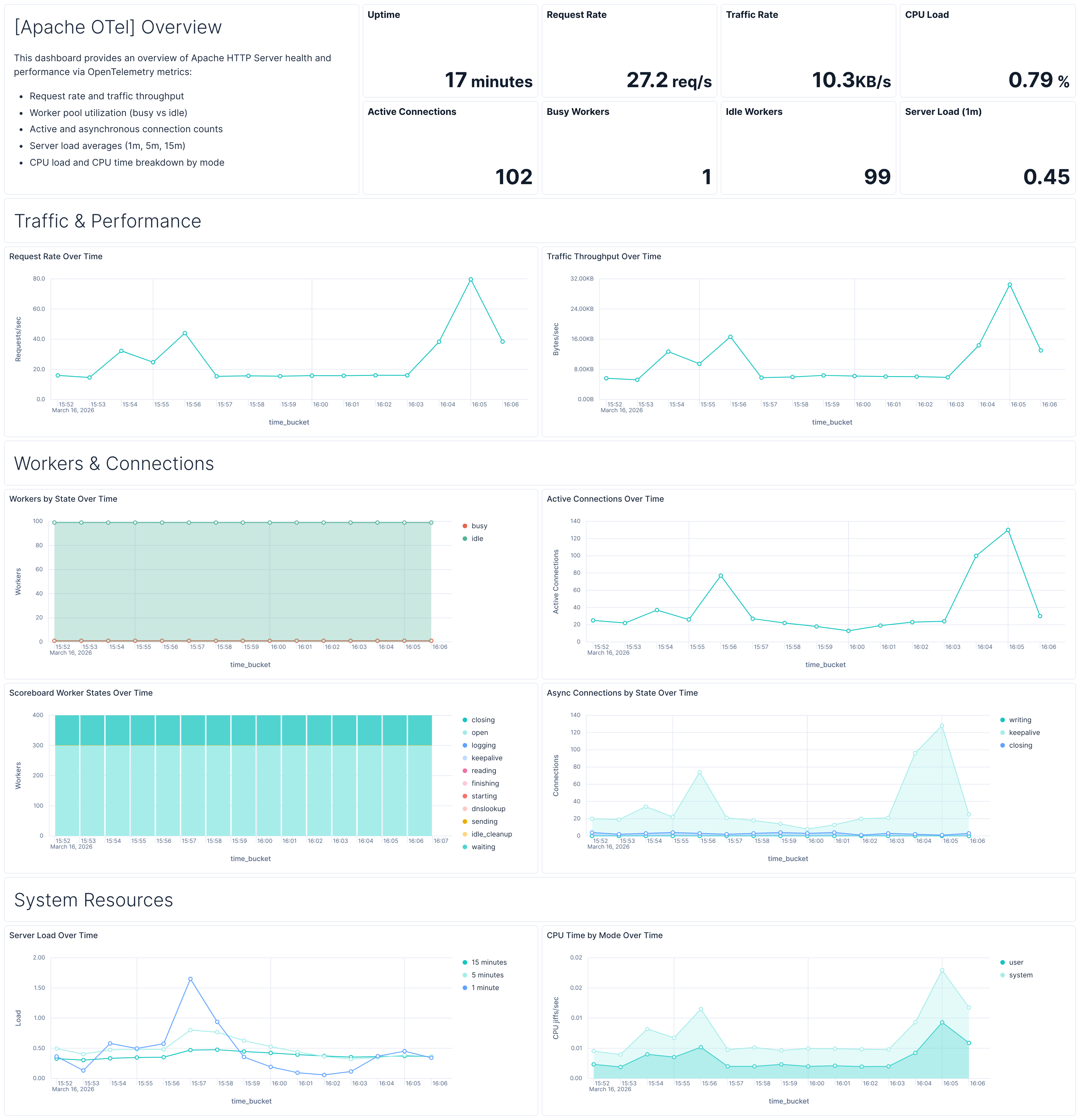

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

×
